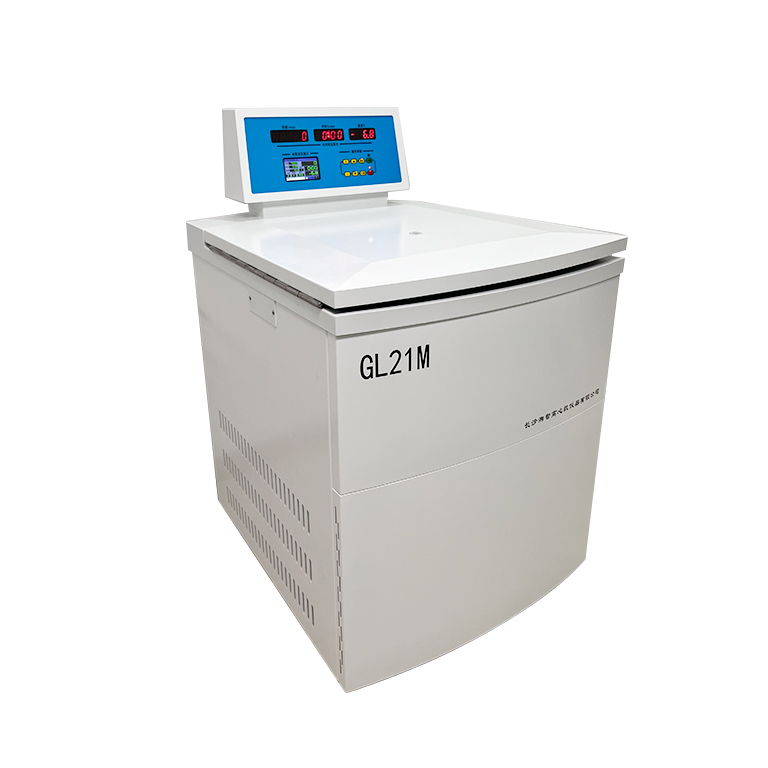

GL21M High Speed Refrigerated Centrifuge

GL21M High Speed Refrigerated Centrifuge manufacturer

GL21M High Speed Refrigerated Centrifuge

Name: GL21M High Speed Refrigerated Centrifuge
Uploaded: 2022-09-27T15:19:02+08:00
Duration: 6 min 43 s
Description: The model can process a volume of up to 3 liters, offering a complete solution in the preparation of samples for research labs, clinics, bio-technologic, industrial, and hospitals.

SEND INQUIRY NOW

Model:: GL-21M

Screen:: LED & LCD color screen

Machine Body:: Metal frame

Max.Speed:: 21000rpm

Speed Accuracy:: ±20rpm

Max.RCF:: 47400xg

Max. Capacity:: 6x500ml

Temp. Range:: -20℃~+40℃

Temp. Accuracy:: ±2℃

Timer Range:: 1~99h59min

Acceleration / Deceleration Rates:: 12/12

Control:: Microprocessor Control

Daily-use Program:: 30

Noise:: ≦58db

Motor:: Converter Motor, direct drive

Power Supply:: AC220v 50hz 30A

Motor Power:: 1KW

Compressor Power:: 750W

N.W.:: 220kg

G.W.:: 310kg

Dimension:: 860×730×1200mm(L×W×H)

Package Dimension:: 1000×850×1400mm(L×W×H)

SEND INQUIRY NOW

The model can process a volume of up to 3 liters, offering a complete solution in the preparation of samples for research labs, clinics, bio-technologic, industrial, and hospitals.

Product Details

Product Feature

GL21M High Speed Refrigerated Centrifuge

◆ Gas spring to prevent falling of lid.

◆ Manually lid open in case of failure or emergency.

◆ Imbalance fault detection with auto shutdown

◆ Pre-cooling during standstill. CFC free refrigeration system (refrigerant R404A or R134A).

◆ Metal external case. The centrifuge stands on movable castors.

◆ With silent-block and shock absorbers that guarantee a smooth and quiet operation.

◆ Reliable drive system.

◆ Recall of last set parameters. (Useful for repetitive analysis).

◆ Microprocessor control of all functions: speed, time, temperature, acceleration/deceleration, rcf, program memory, error display.

◆ RPM/RCF adjustable along with the run and value calculating automatically.

◆ The screen shows the set parameters and live values.

◆ Selective ac/dc rates ensure high-quality separations.

◆ The self-diagnostic system provides protection for imbalance, over-temperature / speed/voltage, and electronic lock.

◆ Induction motor maintenance free.

◆ Swing-out rotor head, buckets, and adapters made of high-density material.

◆ Velocity hole provides a way of speed detection.

◆ Produced according to national and international safety standard (e.g. IEC 61010).

◆ ISO9001, ISO13485, CE international standards are met.

Rotor List

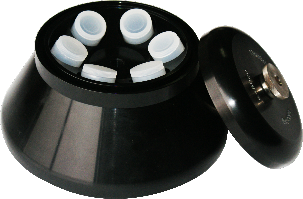

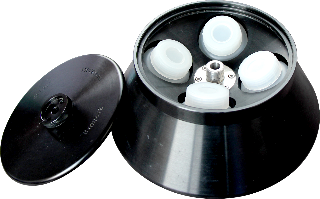

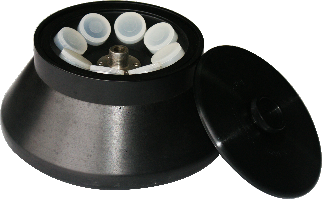

No.1 Angle Rotor	Max. Speed: 21000rpm Capacity: 16 x 10ml Max. RCF: 47400xg ØxL: 16.5 x 78mm	No.2 Angle Rotor	Max. Speed: 20000rpm Capacity: 6 x 50ml Max. RCF: 43000xg ØxL: 29.5 x 96mm
No.3 Angle Rotor	Max. Speed: 18000rpm Capacity: 8 x 50ml Max. RCF: 39190xg ØxL: 29.5 x 96mm	No.4 Angle Rotor	Max. Speed: 15000rpm Capacity: 6 x 70ml Max. RCF: 25700xg ØxL: 38 x 112mm
No.5 Angle Rotor	Max. Speed: 12000rpm Capacity: 8 x 100ml Max. RCF: 19830xg ØxL: 38 x 112mm	No.6 Angle Rotor	Max. Speed: 14000rpm Capacity: 4 x 250ml Max. RCF: 28150xg ØxL: 63 x 116mm
No.7 Angle Rotor	Max. Speed: 12000rpm Capacity: 6 x 300ml Max. RCF: 22600xg ØxL: 63 x 116mm	No.8 Angle Rotor	Max. Speed: 10000rpm Capacity: 6 x 500ml Max. RCF: 18705xg ØxL: 70.5 x 145mm

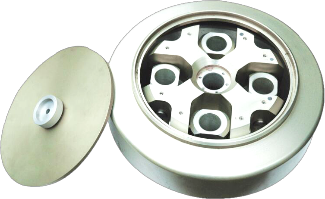

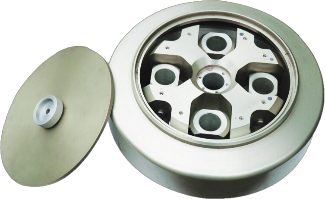

No.9 Angle Rotor	Max. Speed: 12000rpm Capacity: 6 x 250ml Max. RCF: 22800xg ØxL: 63 x 116mm	No.10 Continuous Rotor	Max. Speed: 14000rpm Capacity: 1000ml Max. RCF: 21500xg Material: Lc
No.11 Continuous Rotor	Max. Speed: 16000rpm Capacity: 1000ml Max. RCF: 28200xg Material: Ti	No.12 Continuous Rotor	Max. Speed: 8000rpm Capacity: 3000ml Max. RCF: 9530xg Material: Lc
No.13 Continuous Rotor	Max. Speed: 10000rpm Capacity: 3000ml Max. RCF: 14800xg Material: Ti	No.14 Swing Rotor	Max. Speed: 13000rpm Capacity: 4 x 30ml Max. RCF: 23800xg ØxL: 29.5 x 94mm
No.15 Angle Rotor	Max. Speed: 12000rpm Capacity: 4 x 4 x 5ml Max. RCF: 11900xg ØxL: 14 x 51mm	No.16 Angle Rotor	Max. Speed: 10000rpm Capacity: 4 x 50ml Max. RCF: 16200xg ØxL: 30.5 x 86.5mm

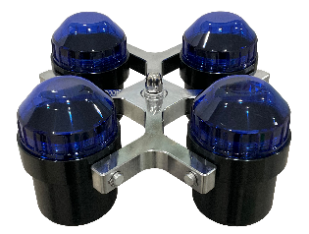

No.17 Swing Rotor	Max. Speed: 4000rpm Capacity: 4 x 500ml Max. RCF: 3520xg ØxL: 81 x 105mm	No.18 Swing Rotor	Max. Speed: 4000rpm Capacity: 2 x 2 x 96holes Max. RCF: 2390xg ØxL: 137 x 87 x 42mm
